About the printer:

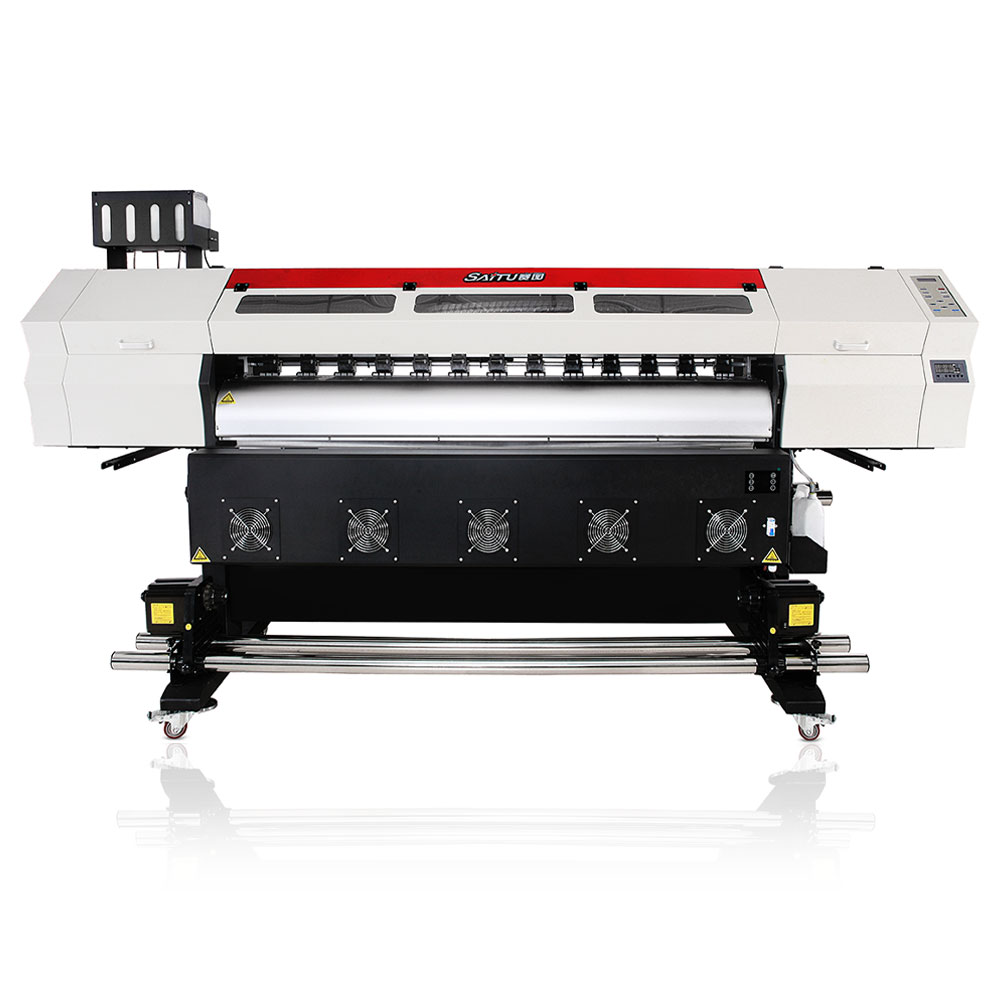

Equipped with advanced features, the SAITU1.6m Double Heads Printer offers superior printing capabilities for a wide range of industries.
This printer can be equipped with two Epson DX5/DX7/ 5113/4720/3200 sprinklers, providing users with flexible printing options.
About the board:
The printer features an advanced AT board, which provides convenient printing options for different feathering, dark, and cool colors. The cable transmission is stable, ensuring reliable operation.
About the detail:
Furthermore, the printer boasts Japanese THK guide rails, ensuring quiet operation. The main beam is stamped and painted, providing a more stable frame that can withstand direct lifting by a forklift without easy deformation.
The platform is made of an aluminum structure, ensuring higher mechanical accuracy and resistance to deformation. The belt is customized with added steel wire and a Saitu logo, providing better wear resistance for long-term printing.
Moreover, the lifting ink station helps to seal the nozzle better when it’s not in use. The accessories are conveniently located on the side of the nozzle, with only one belt gear on the right side. The left cover can be easily opened to access the plate motor, making it convenient for users to perform repairs and daily maintenance.

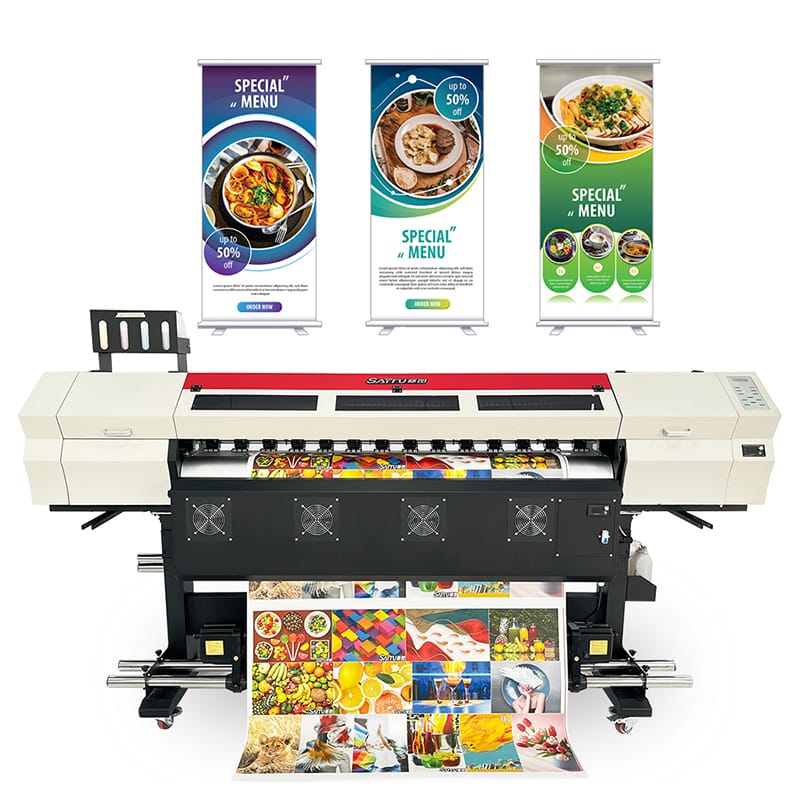

In addition, this printer offers a wide range of printing options suitable for various industries such as advertising, leather, wallpaper, and decorative painting. Its standard ink cartridges, fans, drying, and paper receivers have dual power, enabling them to handle up to 200 meters of material at a time.
PRODUCT PARAMETER:
| Model | ST1602 | |||
| Print head | 2 pcs Epson print heads DX7/DX5 | 2 pcs print heads 5113/4720/i3200 | ||
| Maximum print width | 1700mm | |||
| Print resolution /speed | DX7/DX5 | 5113/4720 | i3200 | |
| Product mode | 30㎡/H | 40㎡/H | 50㎡/H | |
| Resolution mode | 24㎡/H | 30㎡/H | 45㎡/H | |
| High resolution mode | 15㎡/H | 26㎡/H | 35㎡/H | |
| Ink | Sort | Water based ink,Eco solvent ink | ||
| Capacity | Empty ink supply system | |||
| Media | Width | 1600mm | ||
| Thickness | 1.5mm to 8mm adjustable | |||
| Material weight | 75KG | |||
| Sort | PP synthetic paper, back lit,photographic paper,banner, leather and so on. | |||
| High printing quality | VSD technology | |||
| Media heater | Front/back heating (can be controlled separately, optional) | |||
| Media take-up device | Double motor device with the automatic damper. | |||
| Drying system | Infrared ray drying system | |||
| Guide Rail | THK from Japan | |||
| Interface | 1000 Mbit/s | |||
| RIP software | Maintop 5.3,Maintop 6.0. photo print,Wasatch | |||
| Voltage | AC 110V ±10%,AC 220V± 10%,50/60 ±1Hz | |||
| Operation environments | Temperature: 15℃-30℃,Humidity:35%RH-65%RH | |||
| Power | 2500W | |||
| Dimensions of printer (LWH) | 2570*850*1360mm | |||
| Dimensions of packing (LWH) | 2730*850*750mm | |||
| Net weight | 180KG | |||
| Gross weight | 230KG | |||
