| Model | JC2012 | |
| Print head | 12 pcs i3200 print heads | |
| Maximum print width | 1900mm (2300mm optional) | |
| Print resolution /speed | i3200 | |
| Product mode | 420㎡/H | |
| Resolution mode | 210㎡/H | |
| High resolution mode | 160㎡/H | |
| Ink | Sort | Sublimation ink |
| Capacity | 5L continuous bulk ink supply system. | |
| Ink supply mode | Intelligent continuous alarm ink supply system | |
| Media | Width | 2000mm |
| Thickness | 1.5mm to 8mm adjustable | |
| Sort | Sublimation paper | |
| High printing quality | VSD technology | |
| Media take-up device | Double air shaft automatic paper retracting system. | |
| Drying system | Infrared ray drying system | |
| Guide Rail | THK from Japan | |
| Interface | 1000 Mbit/s | |
| RIP software | Maintop 6.1. photo print 19 | |
| Voltage | AC 110V ±10%,AC 220V± 10%,50/60 ±1Hz | |
| Operation environments | Temperature: 15℃-30℃,Humidity:35%RH-65%RH | |
| Power | 10500W | |
| Dimensions of printer (LWH) | 3460*1460*1660mm | |
| Dimensions of packing (LWH) | 3650*1400*1850mm | |
| Net weight | 900KG | |
| Gross weight | 1100KG | |

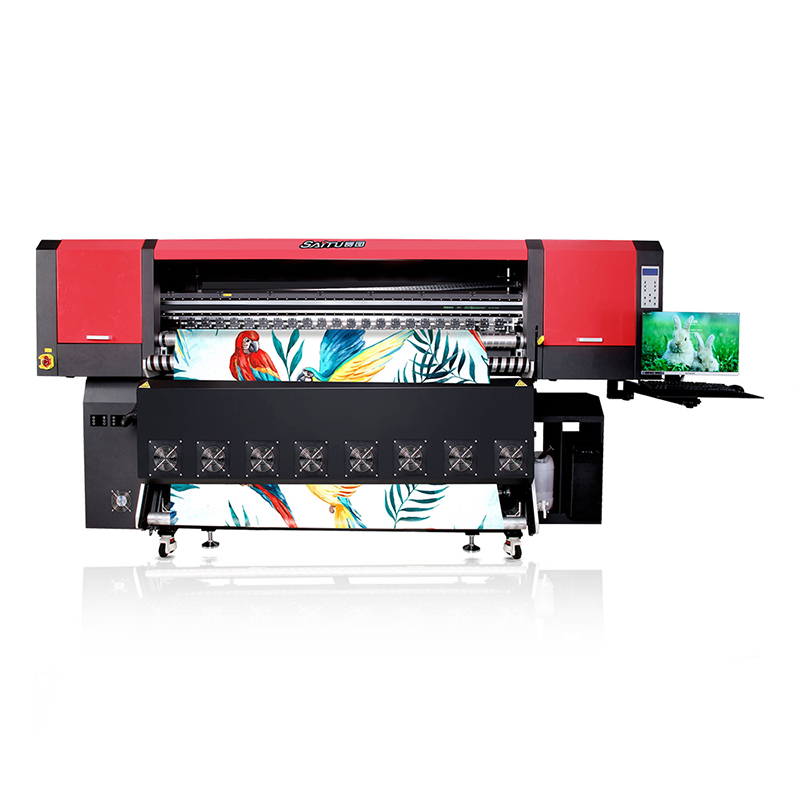

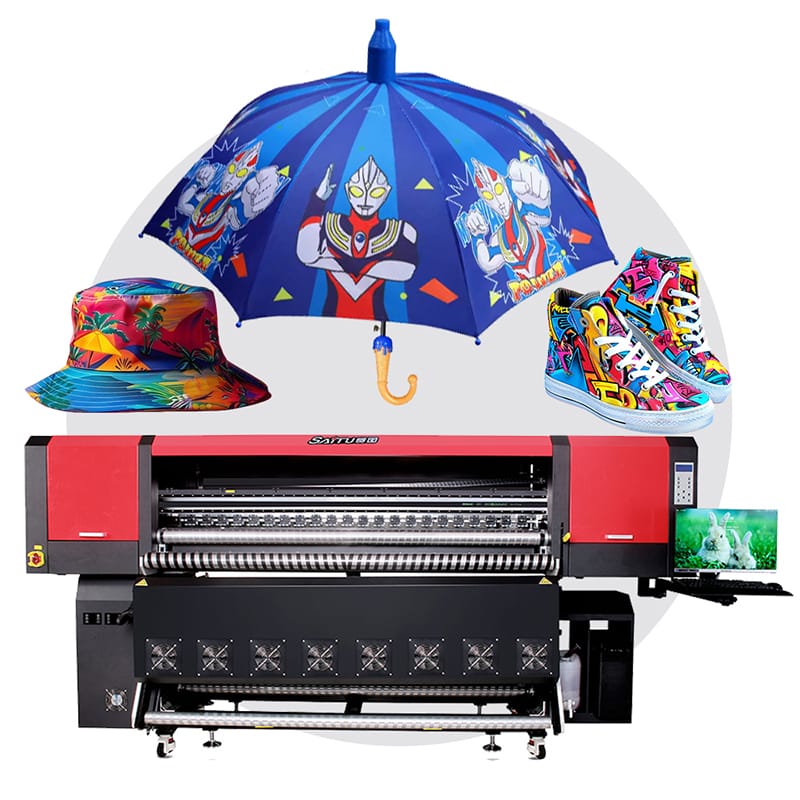

The printer’s robust aluminum and steel body ensures reliable printing for extended periods. Use AT board that supports configurations from 1 to 36 heads, catering to diverse printing needs. Safety is paramount with a collision avoidance system, while a paper-out and ink-out alarm system promptly alerts operators. A large-capacity ink tank improves efficiency. We offer sizes :1.9m,2.3m, 3.2m for 12-head models. To enhance stability and accommodate thinner paper, two additional paper guide rods are installed at the front. Ideal for multiple industries, including clothing, bed sheets, curtains, and more, this printer offers the perfect solution for reliable and efficient printing.
