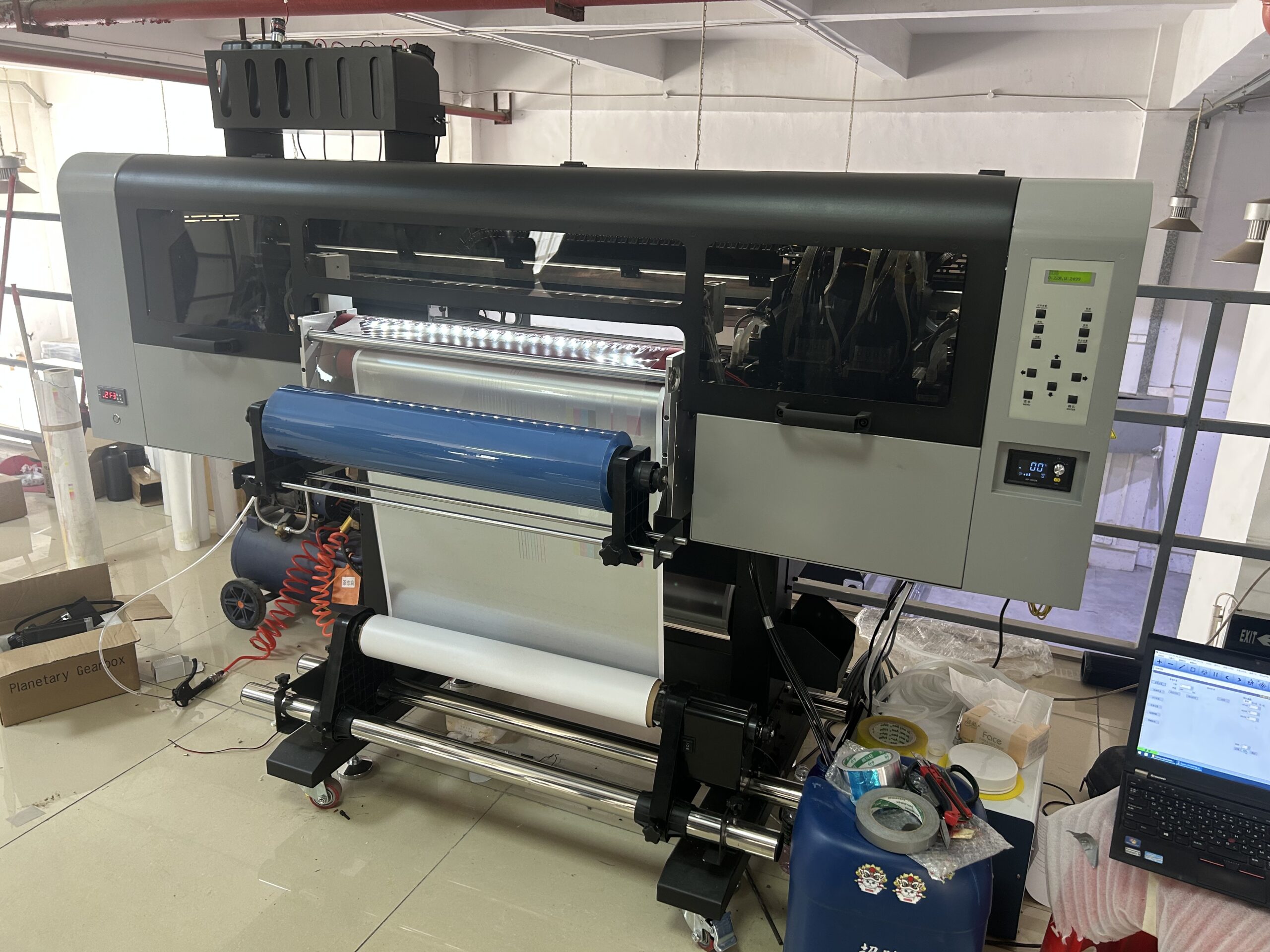

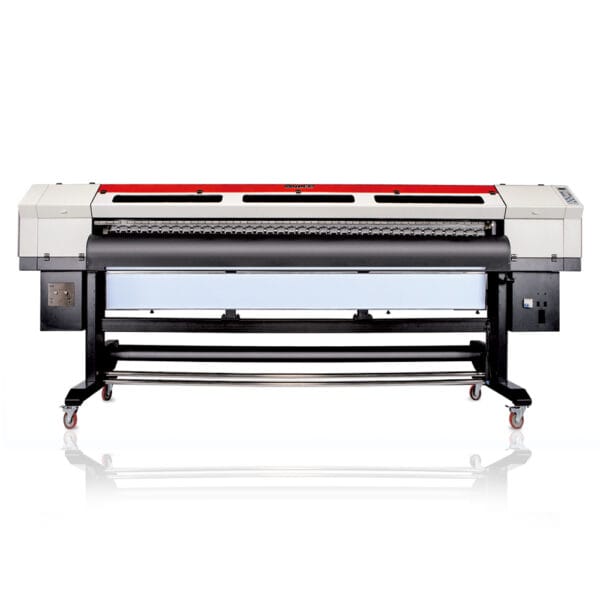

Experience high-quality printing with the Saitu UV DTF Printer.

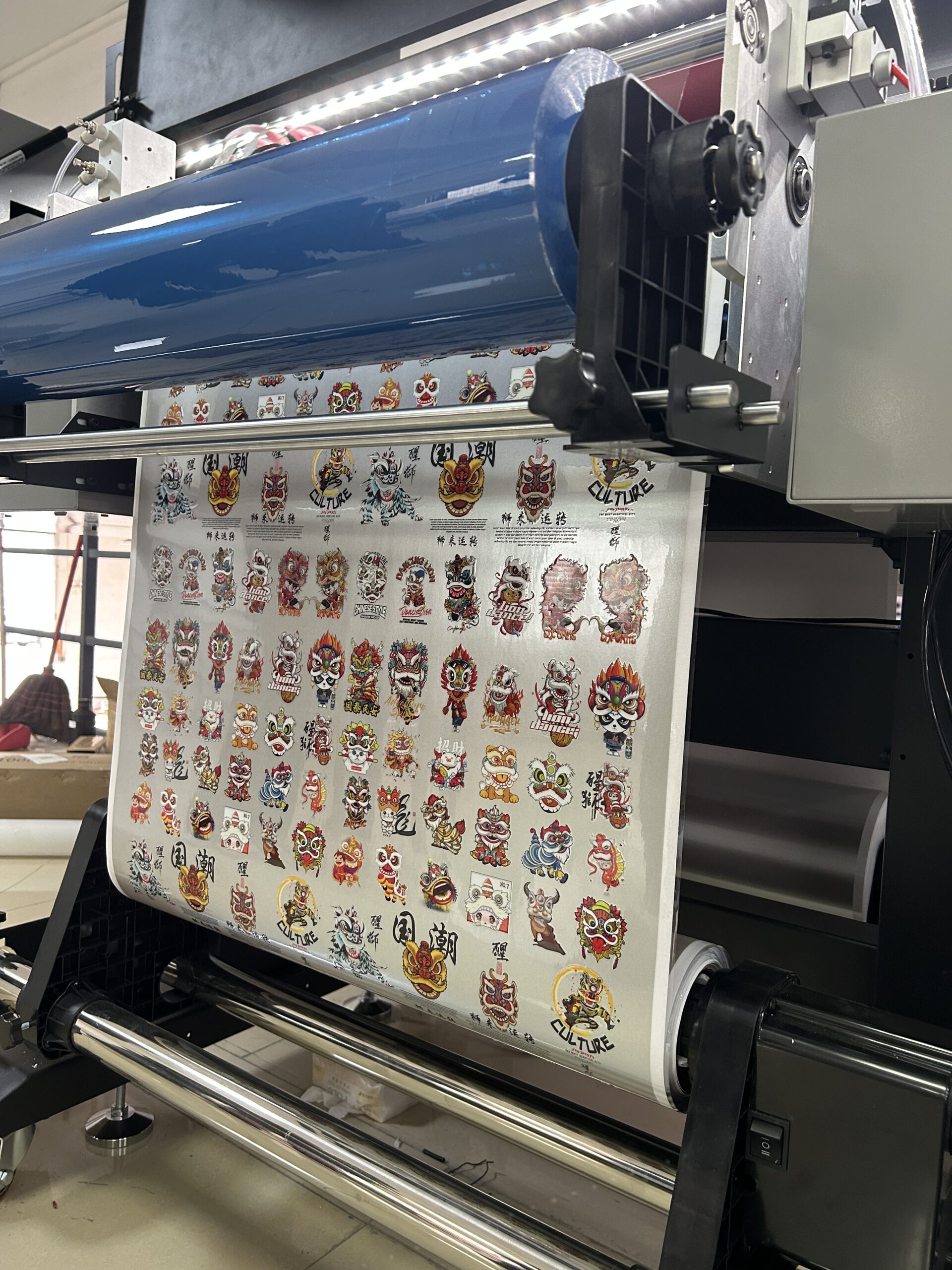

Using UV-curable inks and varnish, this advanced printer allows you to print stunning designs directly onto a base film that features a glue layer.
The printed decals are then bonded together with the glue after UV light curing.
What sets the Saitu UV DTF Printer apart is its versatility.
It can be used on various surfaces such as electronic devices, vehicle parts, wooden products, metal items, and even glass surfaces.
However, it is important to note that cannot be applied to fabrics.
Nevertheless, cardboard surfaces are acceptable, making it a great option for creating custom labels.

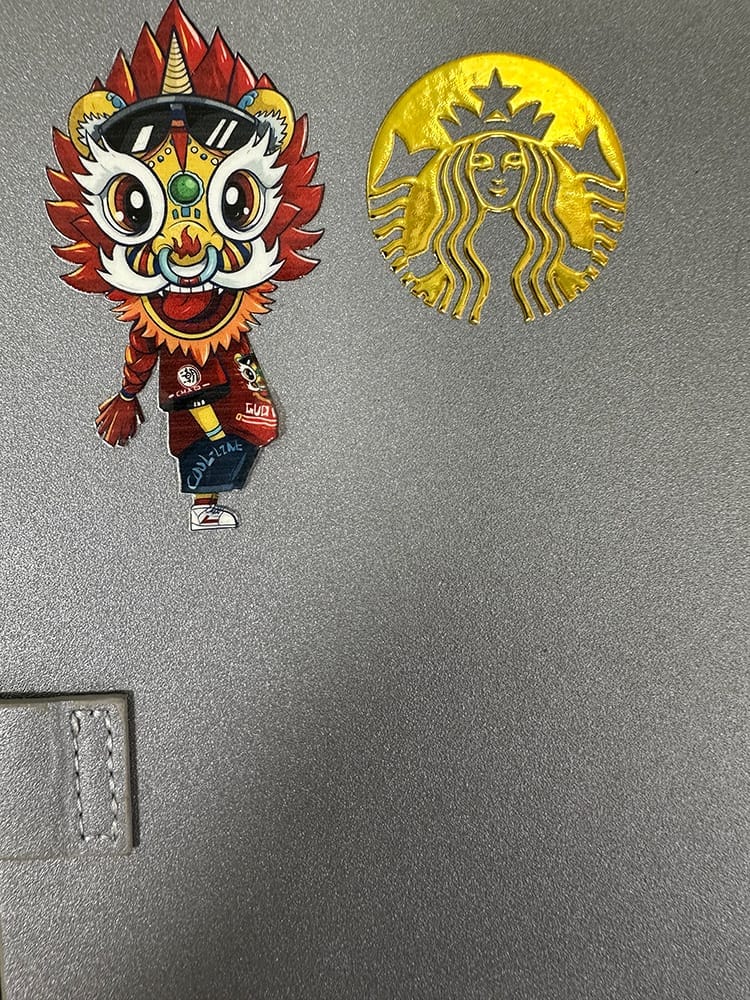

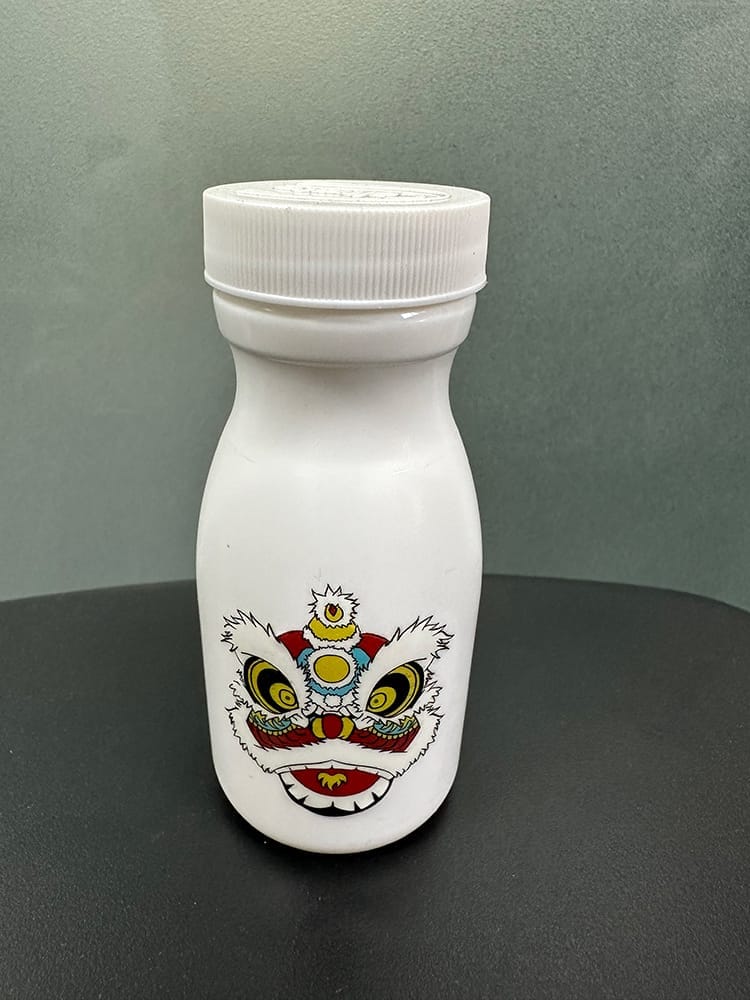

These UV-cured decals are not only durable and chemical resistant but also removable if desired. Simply scratch them off forcefully with a knife.
With a printing width of 600cm and the ability to be equipped with3/4 heads i3200-U1, this printer offers efficiency by producing 12 square meters per hour.
Choose the Saitu UV DTF Printer for all your custom decoration, promotional product,signage, labeling, and creative project needs.
With its exceptional performance and wide range of applications, it is the ideal choice for achieving outstanding results.
Elevate your printing experience with Saitu and unleash your creativity today.
Product Name | SAITU UV DTF printer | ||
Mode | STUV6030 | ||
Main Board | AT Board | ||
Print Head | 3/4 Epson i3200U1 | ||
Platform Width | 70cm | ||
Print Resolution/Speed | 720*1200dpi (4PASS) | 12㎡/H | |
720*1800dpi (6PASS) | 8㎡/H | ||
720*2400dpi (8PASS) | 6㎡/H | ||
Ink | Ink Sort | UV墨水 | |
Print Colour | W+CMYK+Varnish | ||
Capacity | Ink Supply System (1500ML/Color) | ||
Print Media | Soft advertising materials, crystal label materials(A+B film) | ||
Maximum Print width | 60cm | ||
High Printing Quality | VSD Technology | ||
Drying System | UV Light heater, LED light Chiller | ||

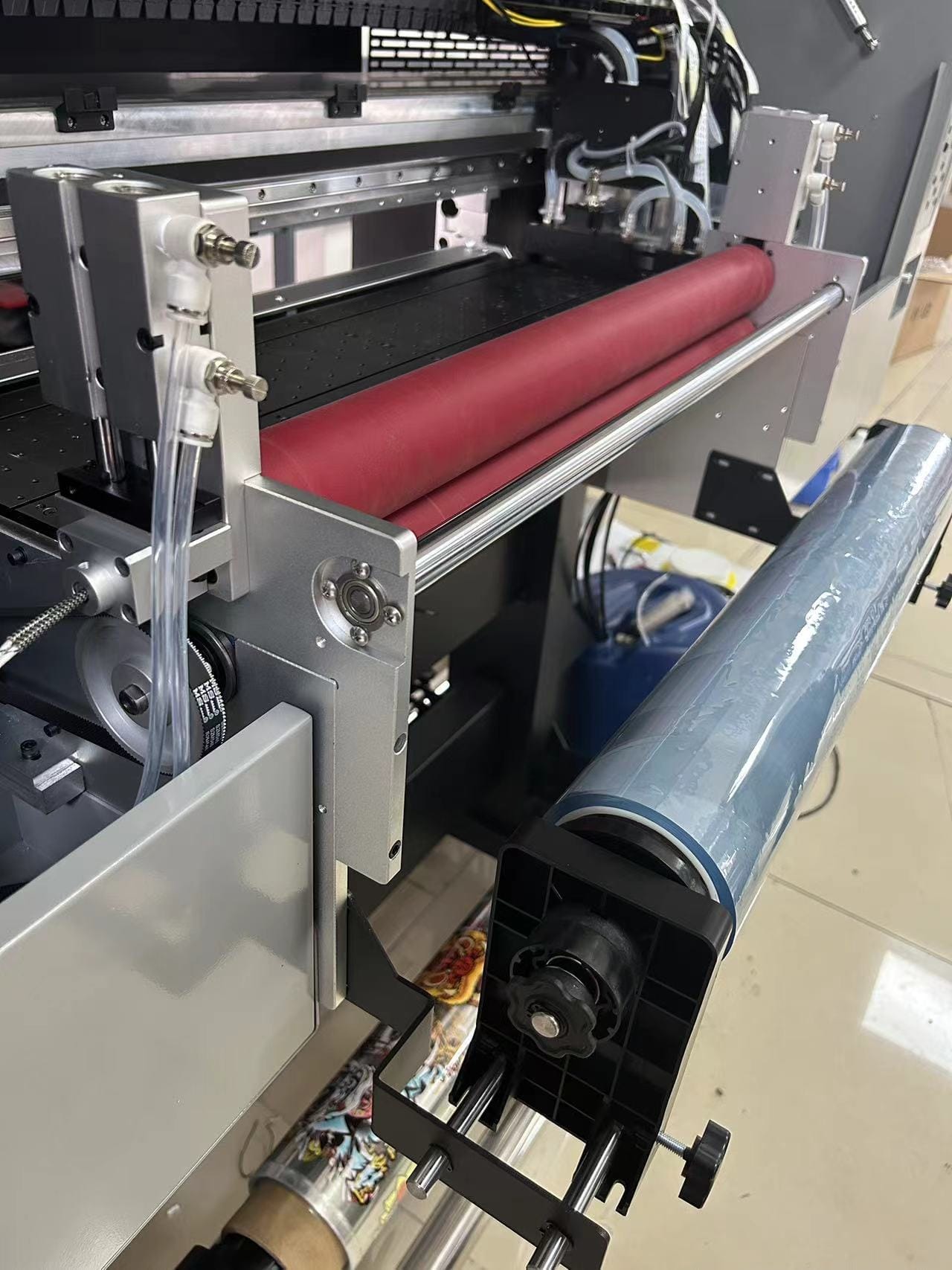

Film coating system | Rubber roll | High-temp. roller, up to 300℃ | |
Air operating lifts | air operating lifts | ||
paper running balance controller | paper running balance controller | ||

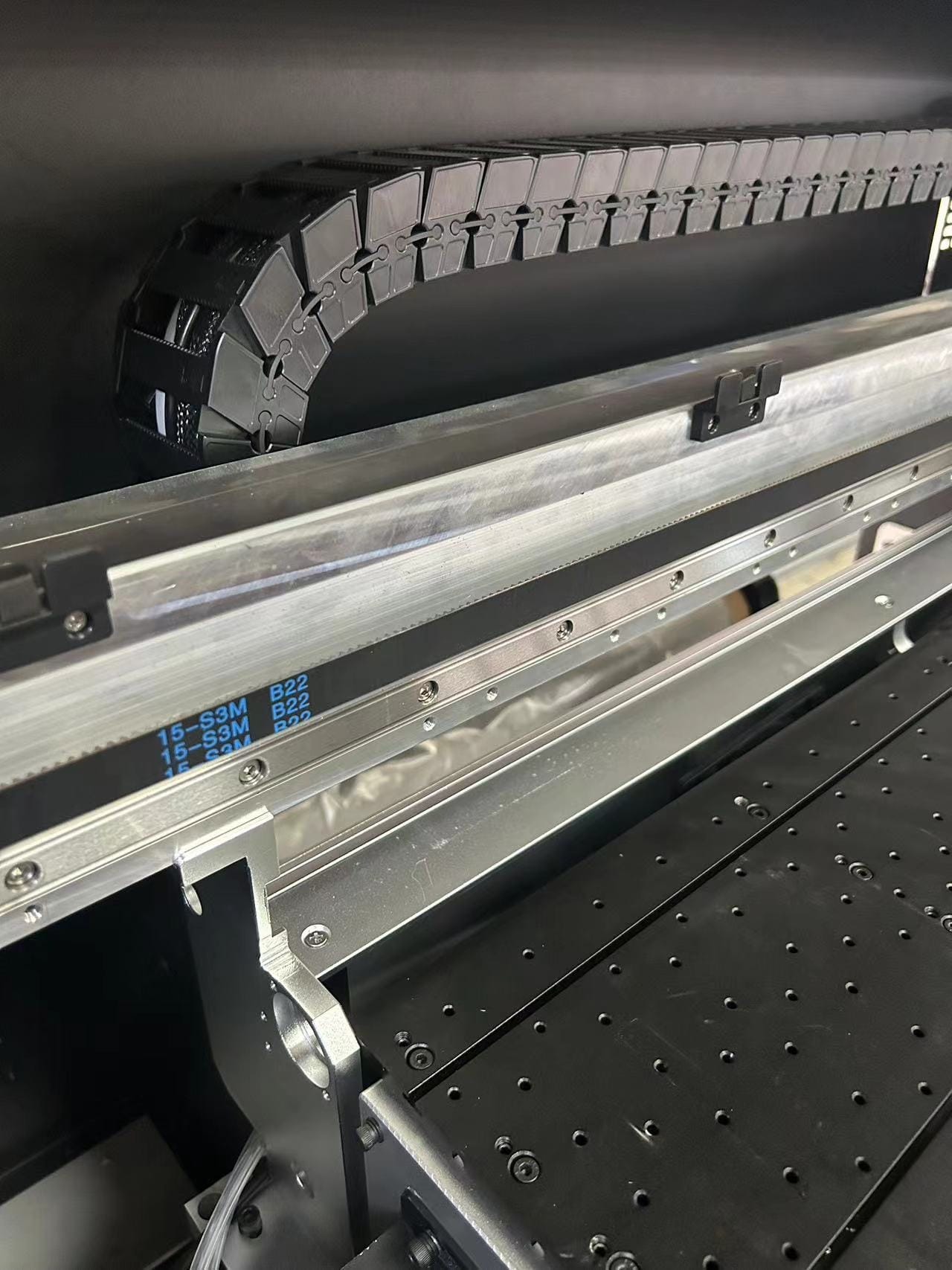

Guide Rail | Famous Brand: THK From Japan | ||
Interface | 1000 Mbit/s | ||
Computer Configuration | Win 10 64 bit, i5 10th/above, 16 GB RAM, 500 SSD (1000Mbit/s) | ||
RIP Software | Maintop UV, PP | ||
Voltage | AC 220V±10%、50/60±1Hz | ||
Operation Enviroments | Temperature: 20℃-30℃, Humidity:55%RH-75%RH | ||
Power 功率 | 4000W | ||
File Format 文件格式 | BMP、TIF、JPG、EPS、PDF | ||
Dimensions of Printer(L*W*H) | L1940 * W903 * H1500mm | ||
Dimensions of Packing(L*W*H) | L2440*W1140*H830mm | ||
Net Weight | 270KG | ||
Gross Weight | 320KG | ||
