Products Parameters:

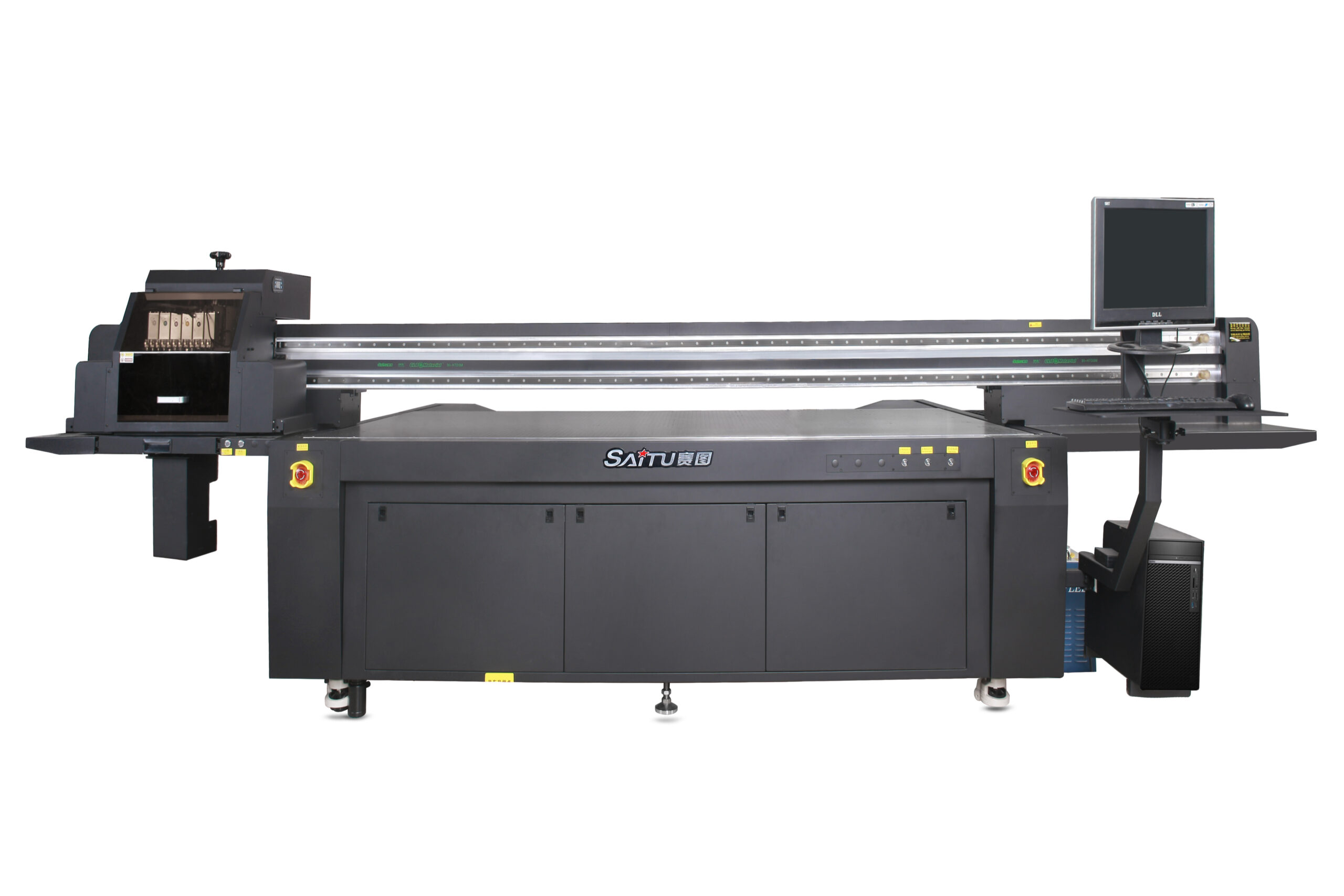

| MODEL | ST2513UV | |||
| Print head (maximum 8 print heads) | Ricoh G5 | Ricoh G6 | Ricoh G6 Magnetic | |
| Print Resolution /speed for 3or 4 heads | Produce mode: | 22.06㎡/H | 27㎡/H | 36㎡/H |
| Resolution mode: | 15.2㎡/H | 19㎡/H | 22㎡/H | |
| High resolution mode: | 7.1㎡/H | 10㎡/H | 13㎡/H | |
| Maximum Print | 2500*1300mm | |||
| Ink type | UV Ink | |||
| Media | Thickness | 1.5mm to 100mm adjustable for print heads | ||
| Media material | Acrylic, KT Board, Andy board,Soft film, Light board,Scratch fabric, Glass, Ceramic tile, Wood block, Metal plate, Mobile phone shell, Background decorative paintings. | |||
| Guide Rail | THK from Japan | |||
| Interface | USB 3.0 | |||
| RIP software | Maintop V6.0 , Photo print | |||
| Voltage | AC 110V±10%,AC 220V ±10%, 50/60 ±1Hz | |||
| Operation Environments | Temperature:15℃-30℃, Humidity:35%RH-65%RH | |||
| Power | 5500W | |||
| Dimensions of Printer (LWH) | 4.8*2.2*1.5M | |||
| Dimensions of Packing ( LWH ) | 4.85*2.25*1.55M | |||
| Net Weight | 750KG | |||
| Gross Weight | 850KG | |||
PRODUCTS FEATURE:
- Adopt Japan THK double guide rail to make the car position more accurate.
- The front row of the machine has media positioning function, which is convenient for media alignment and saves time.
- There are emergency stop buttons on both sides of the machine, which can be suspended in the process during drawing.
- The platform has built-in 1500W blower (2 sets)
- The machine uses water-cooled circulating lamps of various sizes to maintain a constant temperature.
- The machine has the function of automatic height measurement, which can adjust the height of nozzle printing according to different materials. The maximum thickness height can be 10 cm.
- The machine is equipped with an static eliminator, which can eliminate static electricity.
- Double screw rod is adopted, so the stepping accuracy of the machine is higher
- Imported power box (Taiwan MINGWEI ), OMRON solid state relay.
- The motor is Fuji motor from Japan, with 220V voltage and imported IGUS tow chain.
- Car anti-collision function
- The white ink bottle has an ink-stirring partner and an ink-deficiency alarm function.
- Negative pressure automatic regulating system.
- Ink reflux protection.
- Printing or standby flash function.
- Water cold light source LED – UV curing lamp.
- Automatic thermostatic control heating of two-stage ink cartridge
- The software supports MONTAI 6.0, photo print
- Japan NSK bearing: high standard manufacturing, improve performance
APPLICATION: 应用方案
For advertising : Acrylic, KT Board, Andy board,Soft film, Light board,Scratch fabric.
For special industrial: Glass, Ceramic tile, Wood block, Metal plate, Mobile phone shell, Background decorative paintings.
APPLICATION SAMPLE
Acrylic Background decorative paintings
Mobile phone shell/ Metal plate
Wall paper/fabric Scratch fabric
Light board soft film
Wood block Glass
Ceramic tile More samples.
