Looking to enhance the aesthetics of your space? Look no further! Our wide range of products includes soft films,inflatables, stickers, back-lit options, and various kinds of wallpaper. Our state-of-the-art UV printer equipped with a 3.2M G5 print head ensures stunning, high-quality prints. With our roll-to-roll printer, we can cater to all your printing needs. Elevate your decor with us now! Boost your space’s appeal with our extensive selection of design options and cutting-edge printing technology. Experience the difference today!
Revamp Your Space with High-Quality Wall Decor: Explore our wide range of options including soft film,inflatable, sticker, and all kinds of wall paper. Our advanced 3.2M G5 print head, UV printer, and roll-to-roll printer ensure exceptional print quality. Elevate your decor game today!
PRODUCTS PARAMETER
| Модель | JC3206UV (for wall paper) | JC3206UV (for soft film) | |
| Печатающая головка | 6 pcs *RICOH G6 print heads, including 600 nozzles/row *2 lines*1, up to 1200dpi | ||
| Максимальная ширина печати | 3200 мм | ||
| Разрешение печати/Скорость | Product mode: 22㎡/H | Product mode: 20㎡/H | |
| Resolution mode: 19㎡/H | Resolution mode: 16㎡/H | ||
| High resolution mode: 16㎡/H | High resolution mode: 12㎡/H | ||
| Чернила | Сортировать | УФ-чернила | |
| Емкость | Пустая система подачи чернил | ||
| СМИ | Ширина | 3300 мм | |
| Толщина | Регулируемый от 1,5 мм до 8 мм | ||
| Вес материала | 225 кг | ||
| Сортировать | Soft film,inflatable, sticker, back lit, all kinds of wall paper and so on. | ||
| Высокое качество печати | Технология VSD | ||
| Медиа-нагреватель | Back heater (can be controlled seperately ) | ||
| Система привлечения СМИ | Soft film take-up device (optional) | ||
| Система сушки | УФ-нагреватель, светодиодный охладитель | ||
| Направляющая | ТХК из Японии | ||
| Интерфейс | USB 3.0 | ||
| программное обеспечение RIP | Основной Топ 6.0. фотопечать | ||
| Напряжение | 110 В переменного тока ± 10%, 220 В переменного тока ± 10%, 50/60 ± 1 Гц | ||
| Операционная среда | Температура: 15 ℃-30 ℃, влажность: 35%RH-65%RH | ||
| Власть | 3500 Вт | ||
| Размеры принтера (ДШ) | 4800*1160*1580mm | ||
| Размеры упаковки (LWH) | 4880*1220*1680mm | ||
| Вес нетто | 700КГ | ||
| Вес брутто | 900 кг | ||

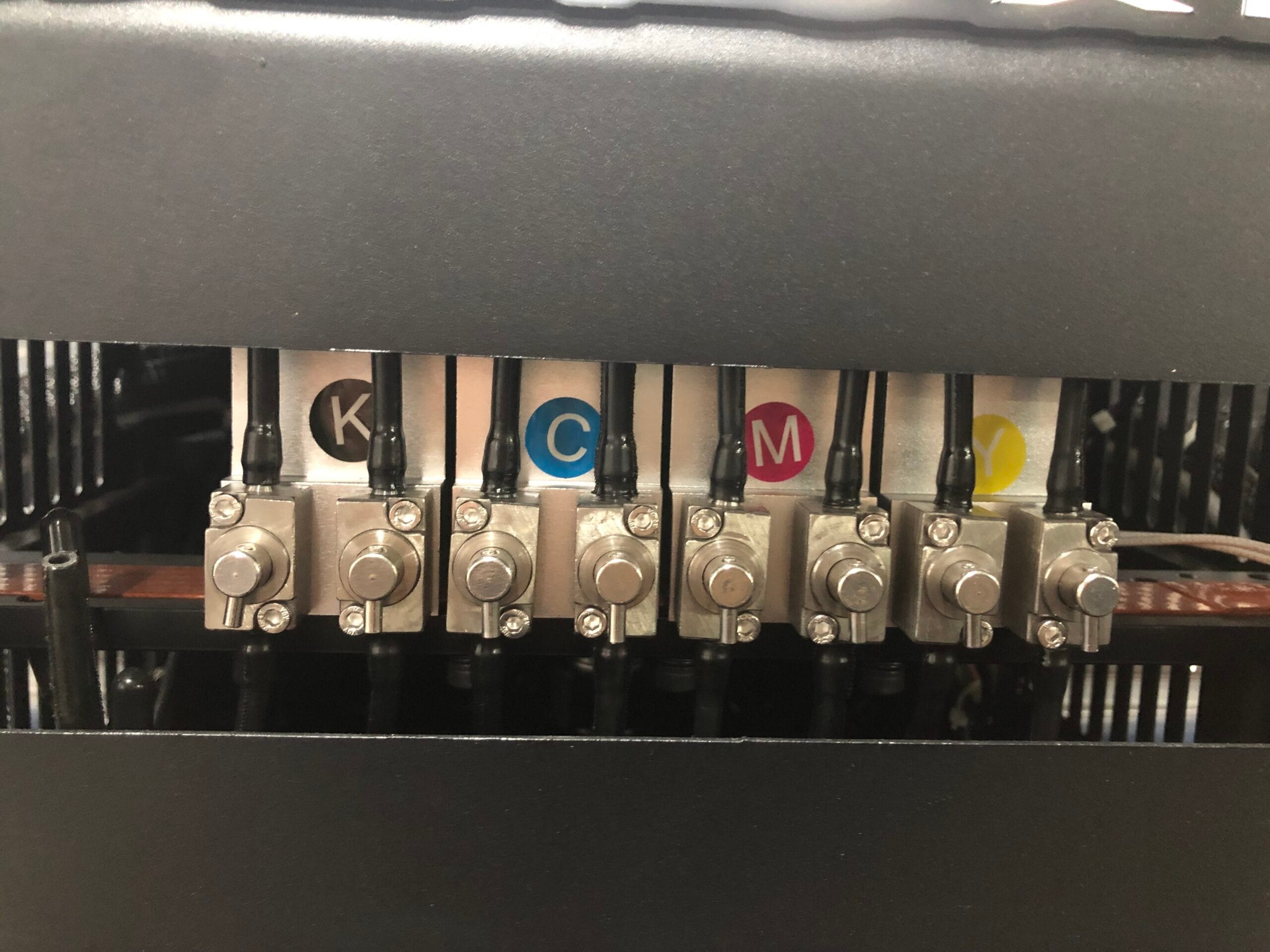

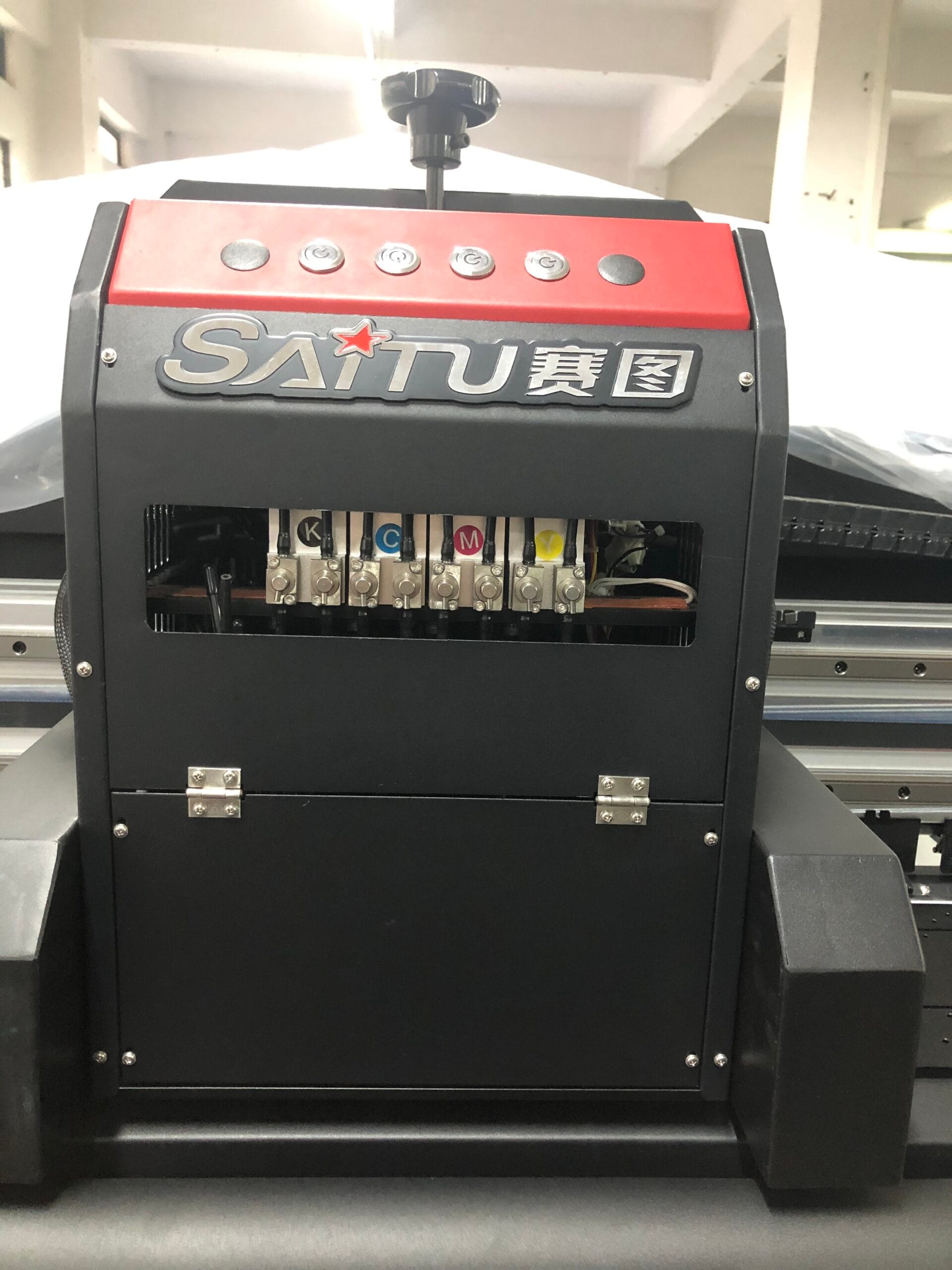

The maximum number of Ricoh print heads that can be arranged is six. Configurations such as W CMYK, W CMYK V, and WW CMYK CMYK are all possible.

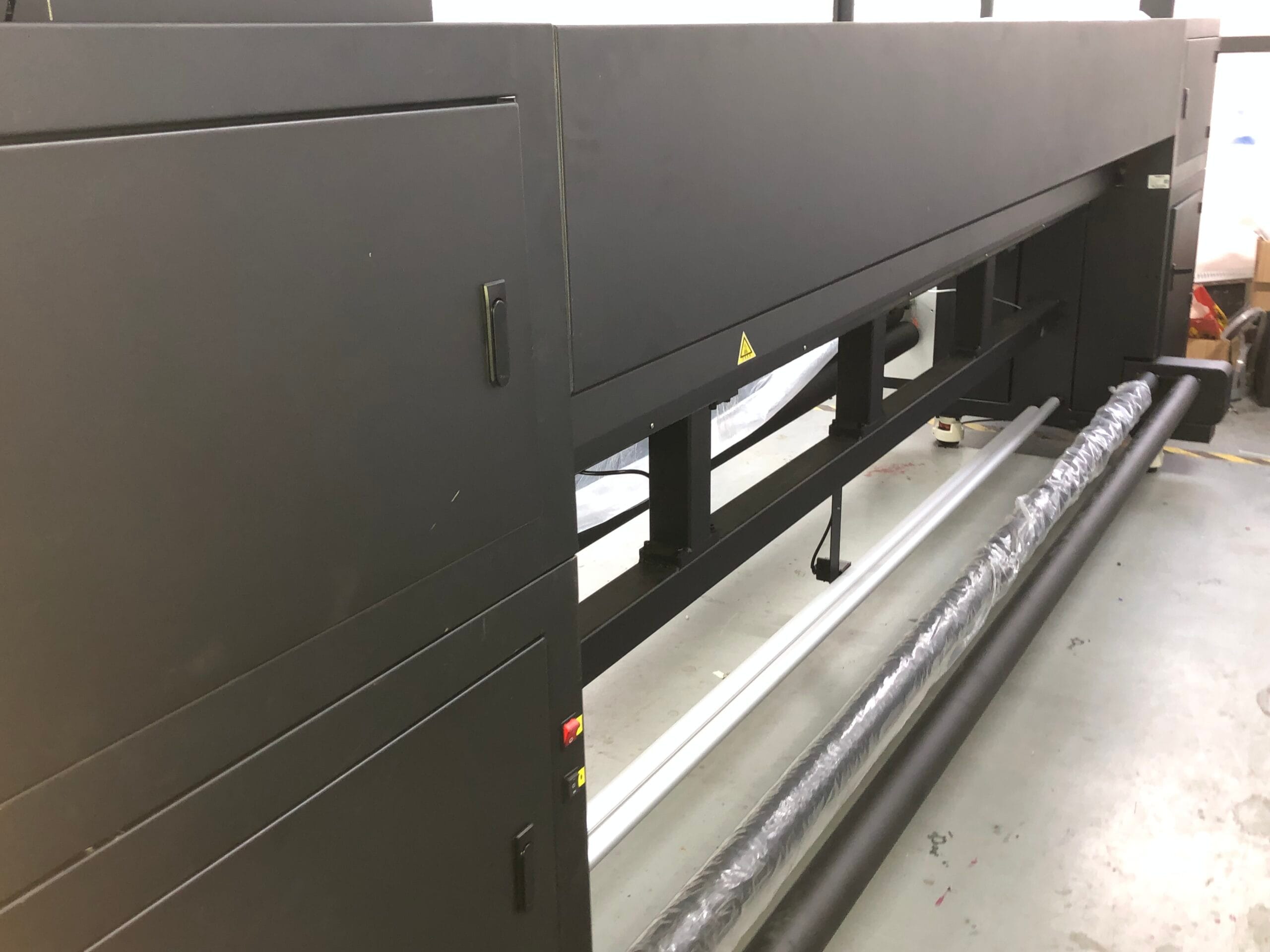

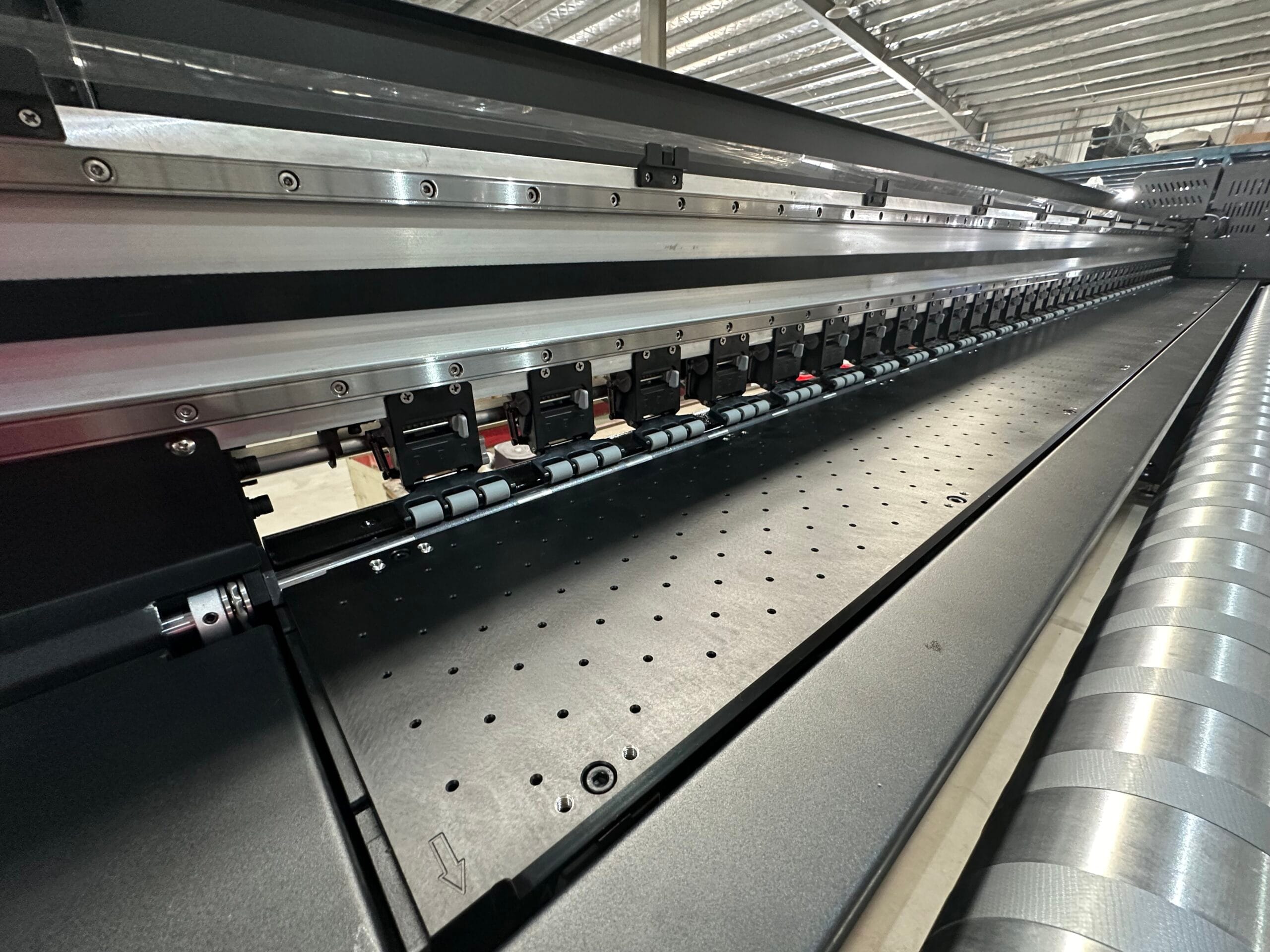

The platform and front assist bars can ensure a flatter printing surface for the material.

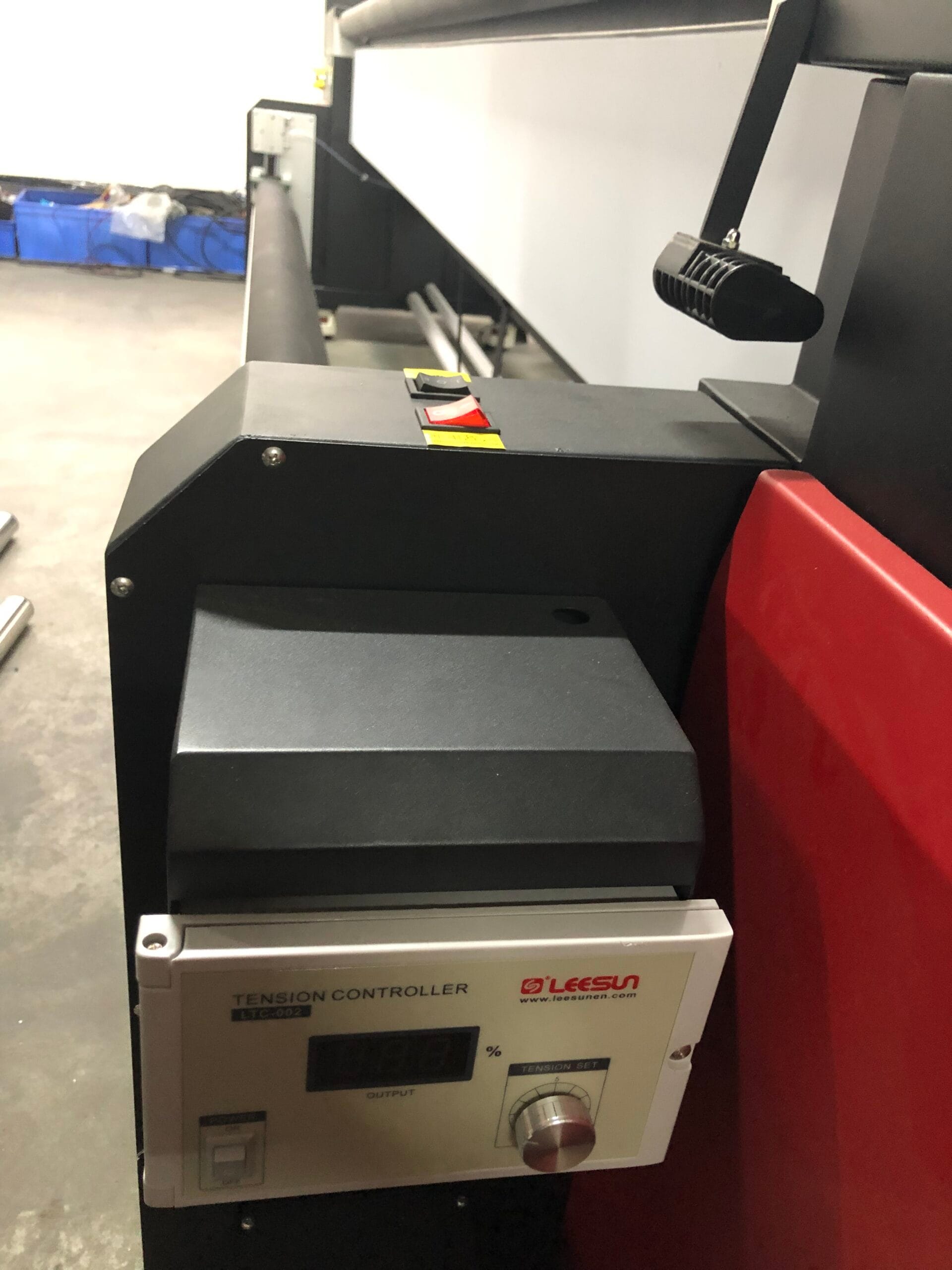

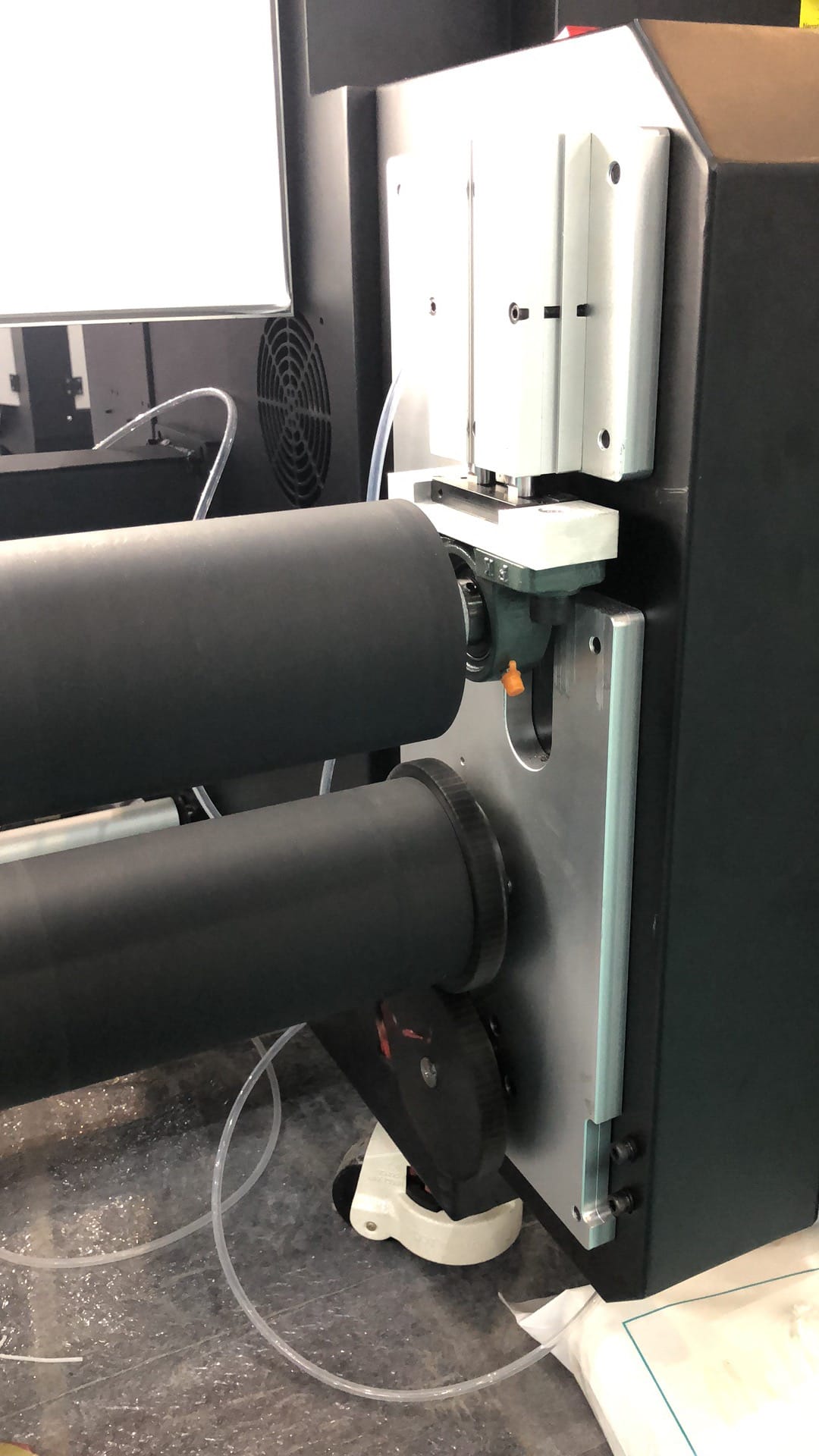

The dedicated rewind system ensures a larger contact surface for elastic materials, resulting in a smoother and flatter printing process.

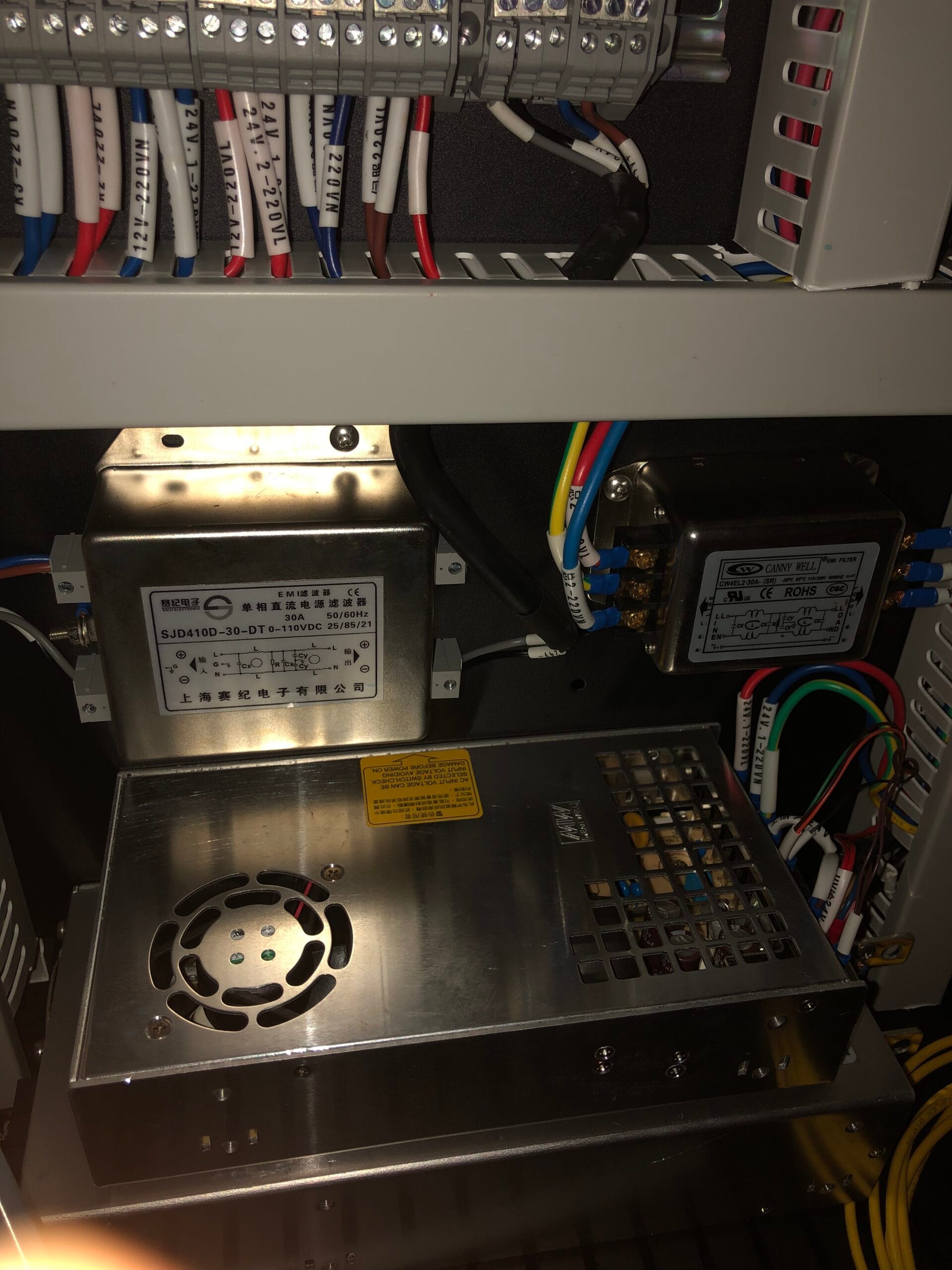

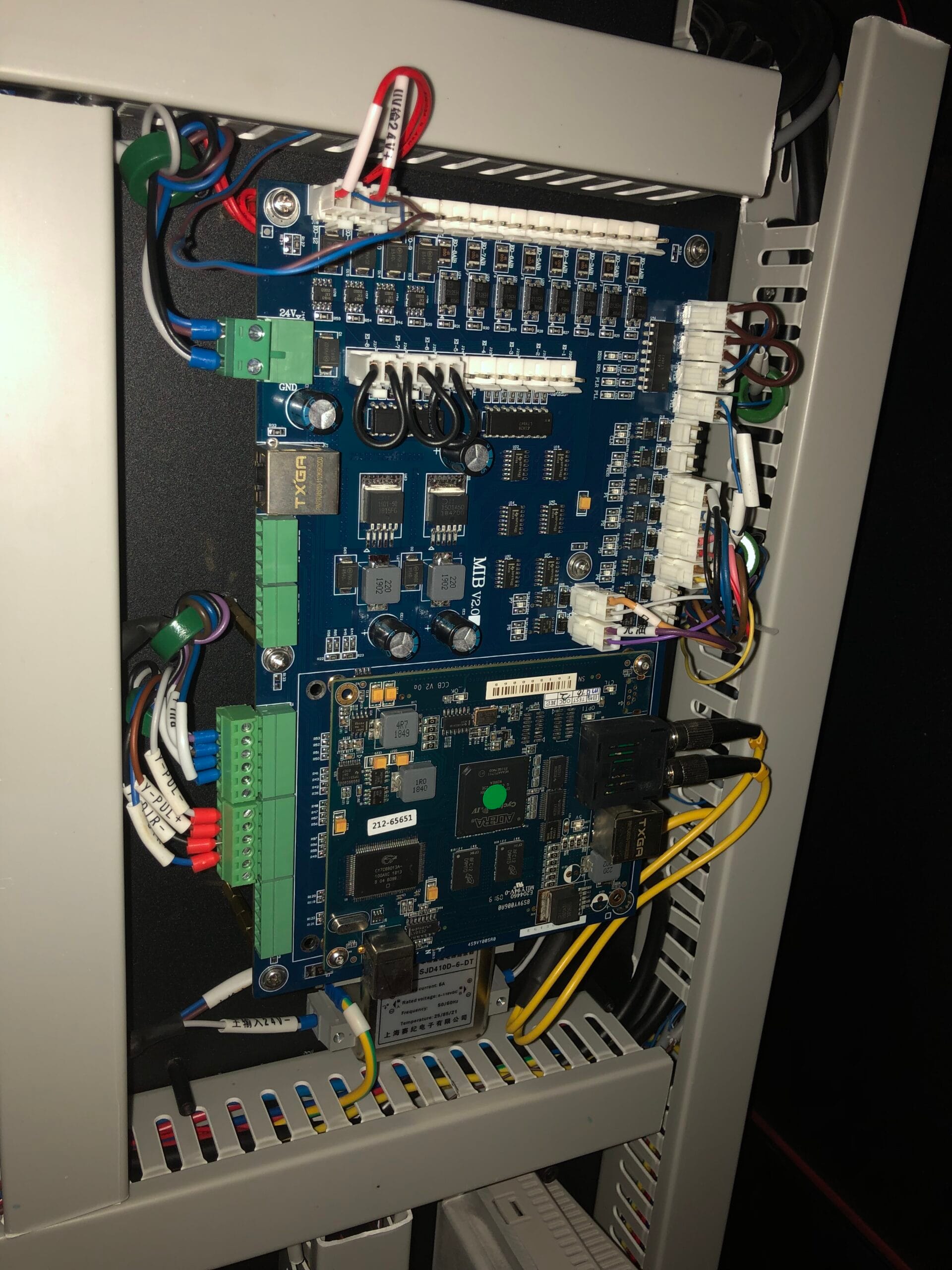

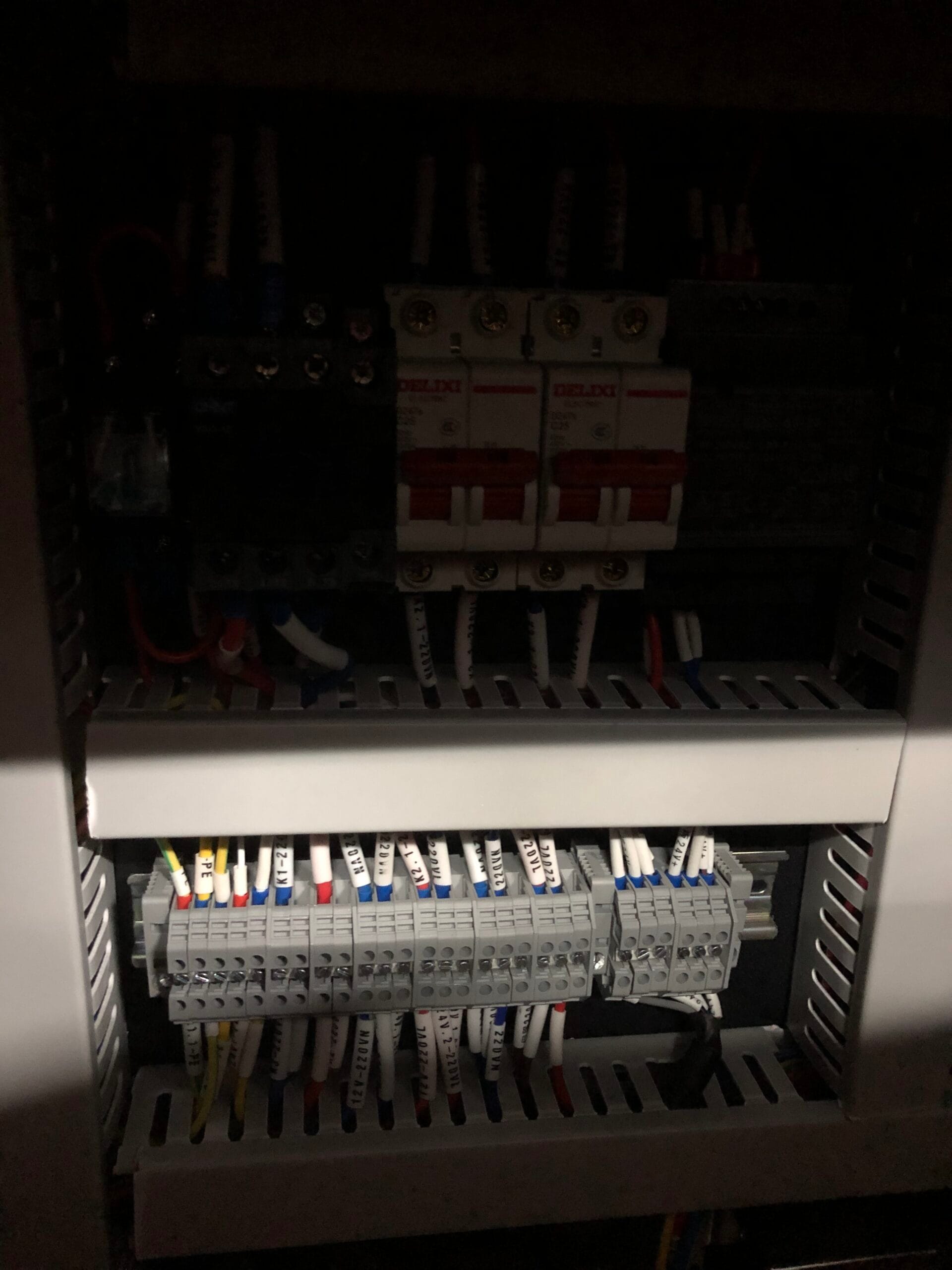

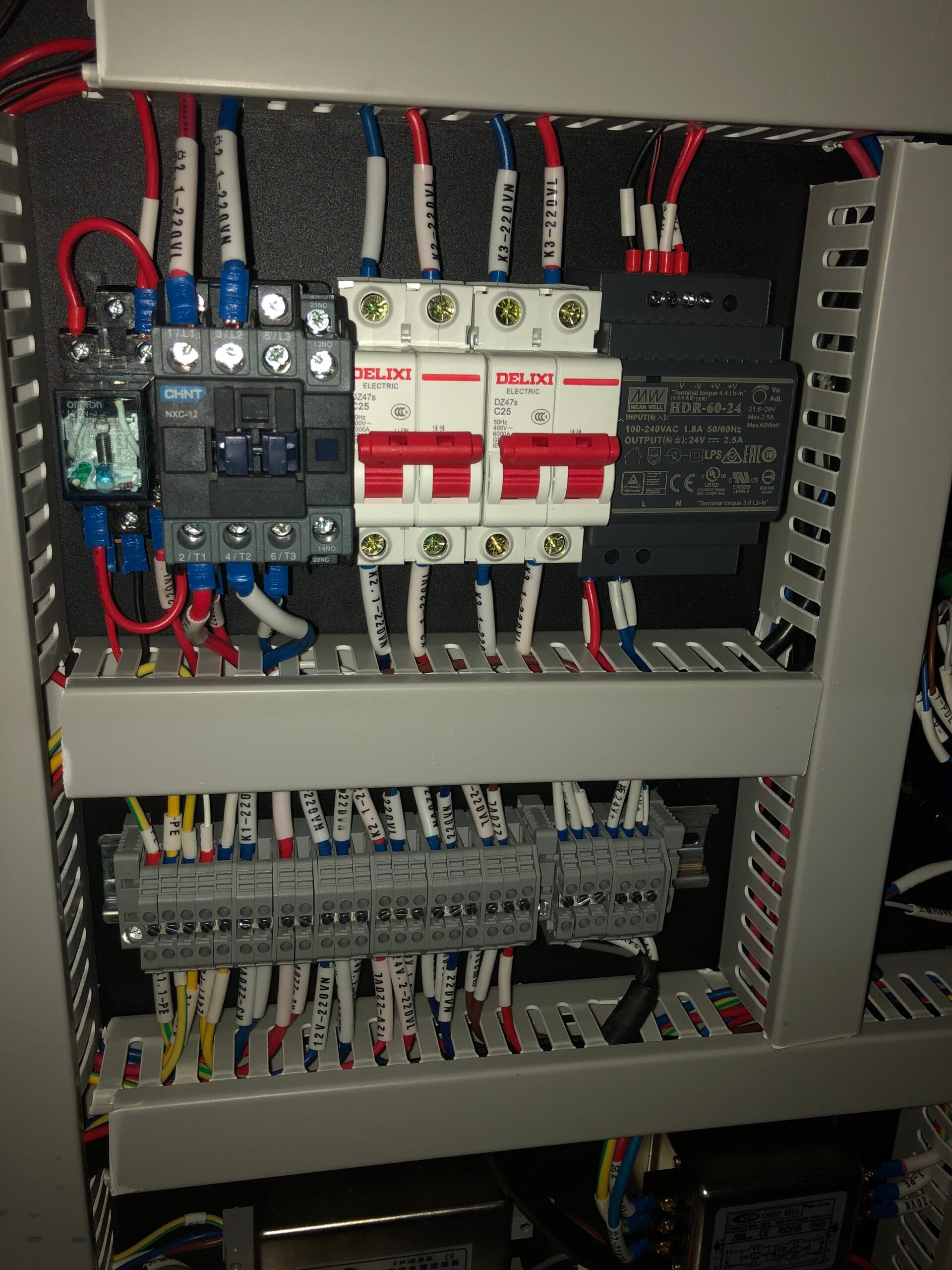

Board cards and clearly visible lines
